DF200A / AP

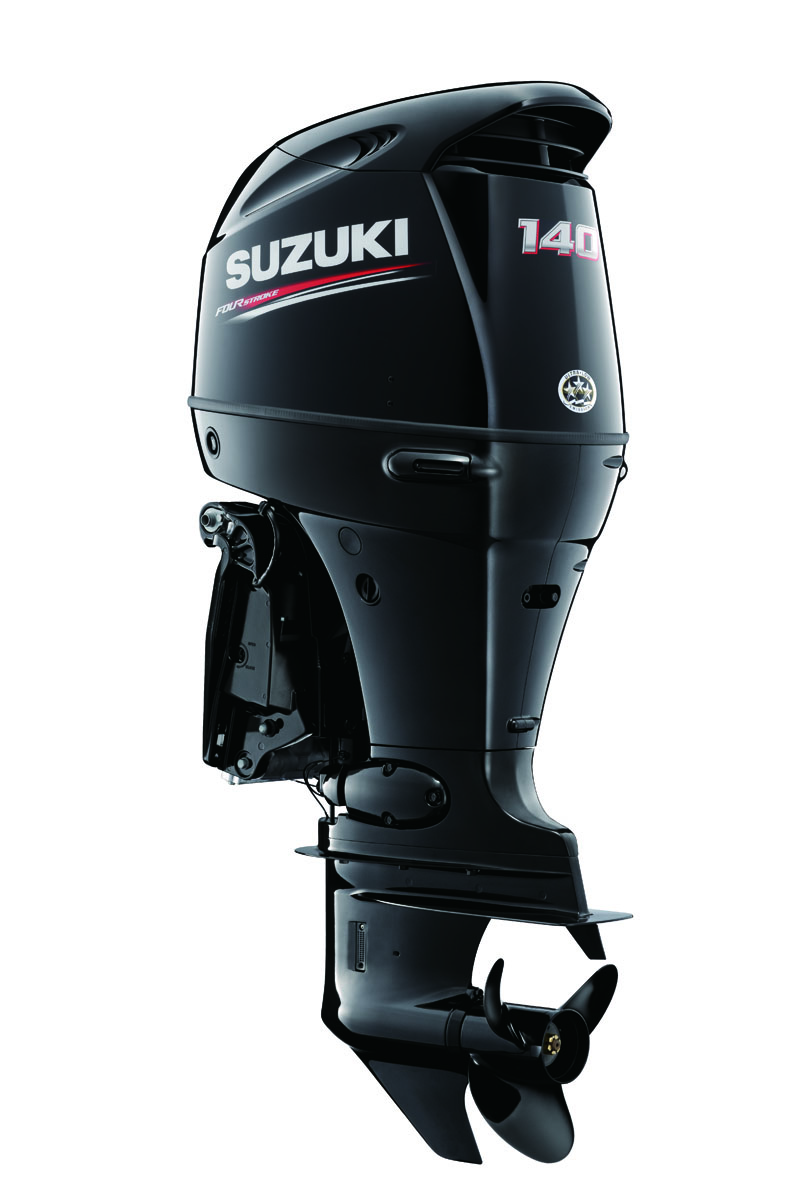

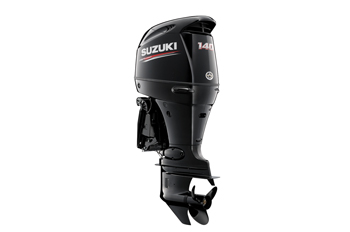

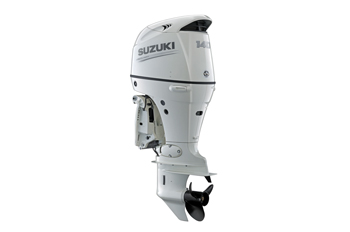

The Suzuki DF140A is the most versatile, high-performance outboard, which satisfied a variety of boating need from leisure to commercial use. light and compact while providing exceptional performance, easily giving this motor the best power-to-weight ratio in its class. An engine cover design features a large air induction port to provide maximum airflow and thus, maximum power. It's also the first 4-stroke to utilize an oil cooler, ensuring that all that horsepower is available under every condition. Added up, the DF140A provides heavy-duty performance and long-lasting durability in a lightweight package.



SPECIFICATIONS

Engine Type 4 – Stroke DOHC 16 - Valve
Fuel Delivery System Multi Point Sequential Electronic
Fuel Injection
Transom Height mm (in.) L: 508 (20) X: 635 (25)
Starting System Electric
Dry Weight kg (lbs.): DF140A: L 179.0 (395.7), X 184.0 (406.8)
No. Of Cylinders In line - 4
Piston Displacement cc (cu. in.) 2,044 (124.7)
Bore X Stroke Inches (mm) 86 x 88 (3.40 x 3.50)
Maximum Output Kw (HP) / RPM 103.0 (140)
Operating Range (RPM) 5600 - 6200
Steering Remote
Oil Pan Capacity liters (U.S. / Imp qts.) 5.5 (5.8)
Ignition System Fully-transistorised
Alternator 12V 40A
Trim Method Power Trim and Tilt
Gear Ratio 2.59: 1
Gear Shift F-N-R (Electronic)
Exhaust Through Prop Hub Exhaust
Propeller Selection (in.) 15 - 25
