DF200A / AP

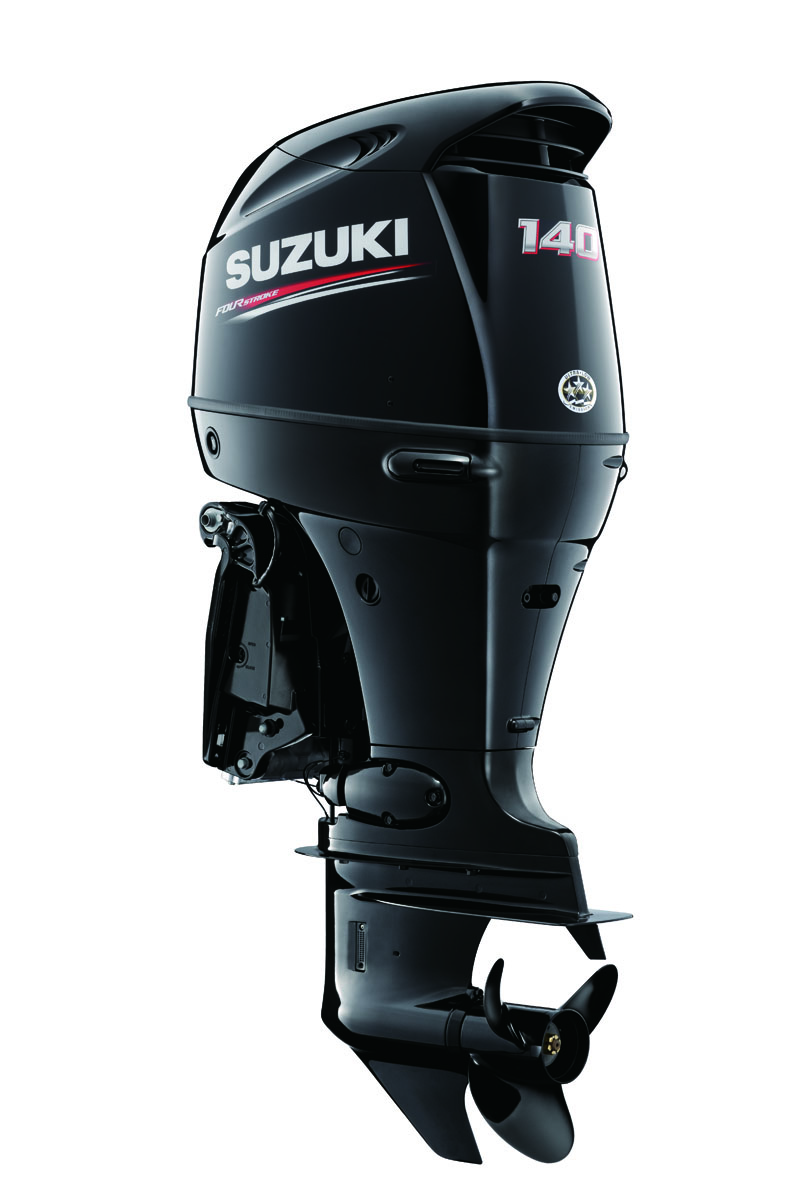

The Suzuki DF140A is the most versatile, high-performance outboard, which satisfied a variety of boating need from leisure to commercial use. light and compact while providing exceptional performance, easily giving this motor the best power-to-weight ratio in its class. An engine cover design features a large air induction port to provide maximum airflow and thus, maximum power. It's also the first 4-stroke to utilize an oil cooler, ensuring that all that horsepower is available under every condition. Added up, the DF140A provides heavy-duty performance and long-lasting durability in a lightweight package.
SPECIFICATIONS
| Engine Type | 4 – Stroke DOHC 16 - Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| Transom Height mm (in.) | L: 508 (20) X: 635 (25) |
| Starting System | Electric |
| Dry Weight kg (lbs.): | DF140A: L 179.0 (395.7), X 184.0 (406.8) |
| No. Of Cylinders | In line - 4 |
| Piston Displacement cc (cu. in.) | 2,044 (124.7) |
| Bore X Stroke Inches (mm) | 86 x 88 (3.40 x 3.50) |
| Maximum Output Kw (HP) / RPM | 103.0 (140) |
| Operating Range (RPM) | 5600 - 6200 |
| Steering | Remote |
| Oil Pan Capacity liters (U.S. / Imp qts.) | 5.5 (5.8) |
| Ignition System | Fully-transistorised |
| Alternator | 12V 40A |
| Trim Method | Power Trim and Tilt |
| Gear Ratio | 2.59: 1 |
| Gear Shift | F-N-R (Electronic) |
| Exhaust | Through Prop Hub Exhaust |
| Propeller Selection (in.) | 15 - 25 |
